FIBERGLASS PLATFORM LADDER
FEATURES

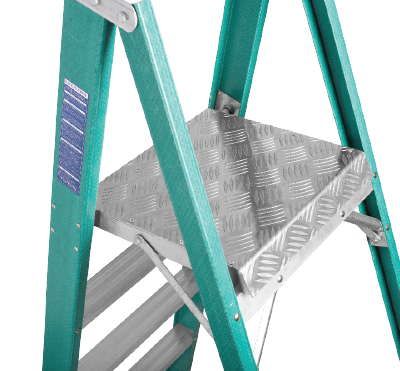

- Pro top with multiple tool tray.

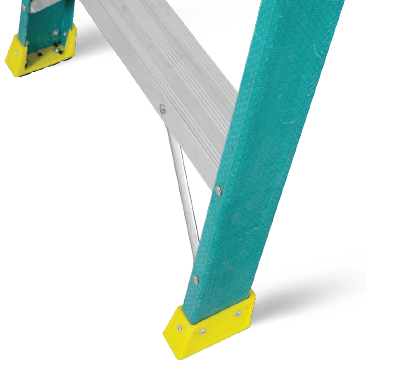

- Rigid slip-resistant feet.
- Heavy duty rivet steps construction.
- Single person use access from front side.
- Foldable type.
- Cross support bracing gives more strength to the steps.
- Anti-static and fire retardant profile.
Item Code : FRPPFL
Safe Working Load: 130 KGS
TECHNICAL DATA (Dimensions in MM)
| CODE | NO OF STEPS | LENGTH | A | B | C | PFH |
|---|---|---|---|---|---|---|
| FRPPFL3 | 2+1 | 1700 | 845 | 565 | 1595 | 855 | FRPPFL4 | 3+1 | 2000 | 1015 | 595 | 1880 | 1140 | FRPPFL5 | 4+1 | 2300 | 1185 | 625 | 2165 | 1425 | FRPPFL6 | 5+1 | 2600 | 1355 | 655 | 2450 | 1710 | FRPPFL7 | 6+1 | 2900 | 1525 | 685 | 2735 | 2010 | FRPPFL8 | 7+1 | 3200 | 1695 | 715 | 3020 | 2290 | FRPPFL9 | 8+1 | 3500 | 1865 | 745 | 3305 | 2570 | FRPPFL10 | 9+1 | 3800 | 2035 | 775 | 3590 | 2900 |
