ALUMINIUM STAIRWAY MOBILE SCAFFOLDING
FEATURES
- Safe landing with a platform.
- Safe working load of 225 kg per platform level up to the maximum of 750 kg per tower.
- Easy walk from the base to the top level.
- Provided staircase with anti-slip step and handrail.
- The platform provided with a large trap door for easy access to working area.
- Easy erection & dismantling.
- Working on different levels at the same time every 2.0 mtr.
Item Code : ASMS
Load Rating: 225 KG per Platform
Safe Working Load: 750 KG per Tower
Base Width: 1.40 MTR
Base Length: 2.0 MTR
SPECIFICATION
| TOWER CODE | ASMS4 | ASMS6 | ASMS8 | ASMS10 | ASMS12 | ASMS14 | ASMS16 |
|---|---|---|---|---|---|---|---|
| PLATFORM HEIGHT | 2.5 M | 4.5 M | 6.5 M | 8.6 M | 10.5 M | 12.5 M | 14.5 M | TOWER HEIGHT | 3.8 M | 5.8 M | 7.8 M | 9.8 M | 11.8 M | 13.8 M | 15.8 M | WORKING HEIGHT | 4.5 M | 6.5 M | 8.5 M | 10.5 M | 12.5 M | 14.5 M | 16.5 M |
ACCESSORIES
| TOWER CODE | ASMS4 | ASMS6 | ASMS8 | ASMS10 | ASMS12 | ASMS14 | ASMS16 |
|---|---|---|---|---|---|---|---|

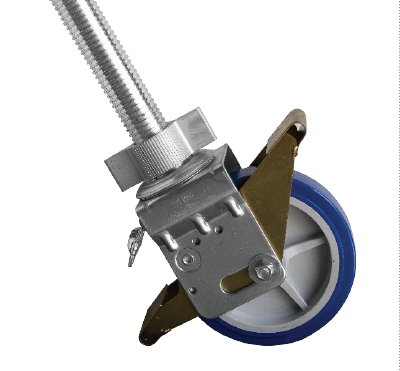

| WALKTHROUGH FRAME | 1 | 1 | 1 | 1 | 1 | 1 | 1 | SPAN FRAME | 1 | 3 | 5 | 7 | 9 | 11 | 13 | GUARD RAIL 1.5 M | 2 | 2 | 2 | 2 | 2 | 2 | 2 | STAIRCASE ONESIDE LANDING | 1 | 2 | 3 | 4 | 5 | 6 | 7 | H-BRACE | 6 | 7 | 8 | 9 | 10 | 11 | 12 | D-BRACE | 3 | 5 | 7 | 9 | 11 | 13 | 15 | HANDRAIL | 1 | 2 | 3 | 4 | 5 | 6 | 7 | STABILIZER 3.0 M | 0 | 4 | 0 | 0 | 0 | 0 | 0 | STABILIZER 4.5 M | 0 | 0 | 4 | 4 | 0 | 0 | 0 | STABILIZER 6.0 M | 0 | 0 | 0 | 0 | 4 | 4 | 4 | CASTER WHEEL 8 INCH WITH JACK | 4 | 4 | 4 | 4 | 4 | 4 | 4 | PLATFORM TRAPDOOR | 2 | 2 | 2 | 2 | 2 | 2 | 2 | PLATFORM FIX | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
