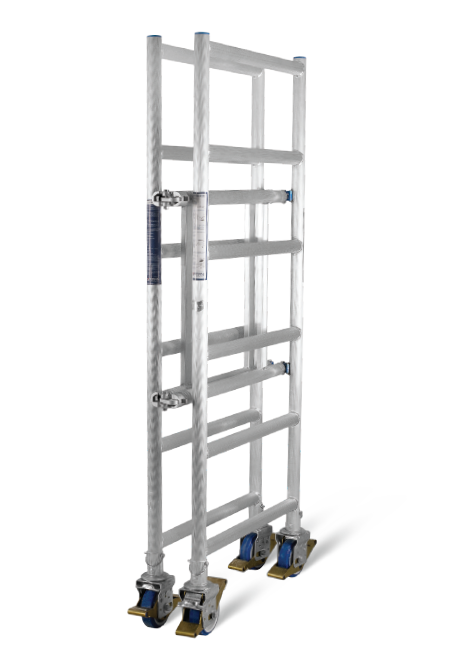

ALUMINIUM FOLDING SCAFFOLDING
FEATURES
- Folding mechanism enables easy transport and storage facility.
- Single person can assemble and dismantle the unit comfortably.
- Caster wheels are provided with dual breaking system.
- Fully welded with folding mechanism.
Item Code : AFMS
Load Rating: 225 KG per Platform
Safe Working Load: 700 KG per Tower
Base Width: 0.8 MTR
Base Length: 1.8 MTR
| CODE | WIDTH | LENGTH | HEIGHT | PLATFORM HEIGHT | PLATFORM | HORIZONTAL BRACE | DIAGONAL BRACE | 6 INCH CASTER WHEEL | SPAN FRAME |
|---|---|---|---|---|---|---|---|---|---|
| AFMS2 | 0.8 M | 1.8 M | 2.0 M | 1.0 M | 1 | 3 | 0 | 4 | 0 | AFMS3 | 0.8 M | 1.8 M | 3.0 M | 2.0 M | 1 | 5 | 2 | 4 | 1.0 MTR x 2 | AFMS4 | 0.8 M | 1.8 M | 4.0 M | 3.0 M | 1 | 5 | 2 | 4 | 2.0 MTR x 2 |
